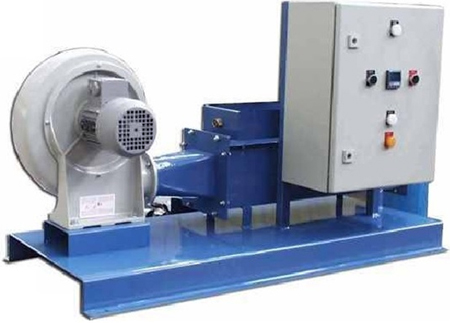

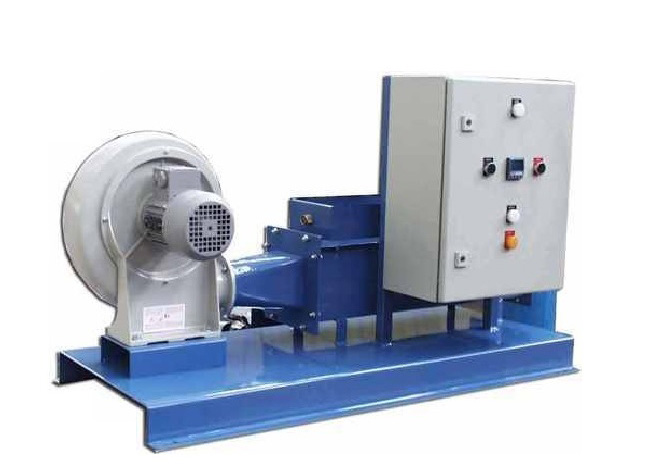

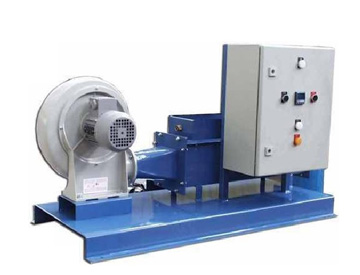

We design and manufacture Standard Electric Hot Air / Gas Generators (HAG / HGG) from 50 Kg/Hr capacity to 250 Kg/Hr capacity at Air Pressure 250 mmWC (min.) and max. 200°C air out temperature. Our Electric Hot Air Generators are very efficient, fully automatic and very easy to operate.
We also provide customized models as per the end users requirement maximum flow rate up to 500 cfm @ 750 oC air out temperature.
Operating Parameters:
(For Standard Models)
Flow Rate |
50 KG/Hr to 250 Kg/Hr (FAD 30 to 150 CFM) |
Temperature |
50 to 200 °c |
Pressure |
Up to 250mmWC |
Material |
Carbon steel / Stainless steel |
Power |
3KW TO 15KW |
Phase |
Single Phase / Three Phase |
|
MODEL |
CAPACITY (kg/hr) |
FAD (CFM) |
RATED POWER (KW) |
EN HAG 50 |
50 |
30 |
3 |
EN HAG 100 |
100 |
60 |
6 |
EN HAG 150 |
150 |
90 |
9 |
EN HAG 200 |
200 |
120 |
12 |
EN HAG 250 |
250 |
150 |
15 |
Rated Conditions:
Air Inlet temperature = 5 oC
Maximum Possible Air Outlet temperature = 200 oC
Minimum Air Pressure = 250 mmWc
Salient Features:
Compact in size
Available in SS or MS internals
Skid mounted with blower
Precise Temperature Controller (+/- 2 oC)
Control Panel with Fault Display
Efficient Inlet Air Filter
Single Phase / Three Phase Options for small models
Ceramic Insulation to Prevent Heat Losses
Fully automatic operation
Low Noise Level
Portable models, fixed foundation not required
-
