ELECTRIC MINI STEAM GENERATOR

  Home   /   Products   /   ELECTRIC MINI STEAM GENERATOR

ELECTRIC MINI STEAM GENERATOR

5 kg/hr
10 kg/hr
20 kg/hr

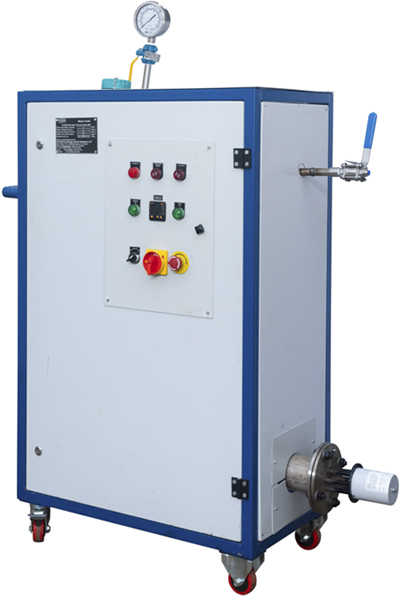

ELECTRIC MINI STEAM GENERATOR

An electric steam generator is a kind of mini boiler. where the steam is generated using electricity, rather than through the combustion of any fuel. These steam generators are Non IBR by design and does not come under any government regulations. Such boilers are used to generate steam for process purposes or lab purposes at a very low running cost, and used in pharma companies, food processing Industries, Chemical companies and hospitals and in many other industries. These steam Generators were designed to be easy to operate and maintain, online models are used for continues steam generation. We have standard models of Electric Steam Generators starting from 3 Kg per Hr up to 40 Kg per Hr. However we can supply customized models too, including LPG / PNG or diesel fired models.

Operating parameters

Feature Specifications
Flow Rate 3 kg/hr to 50 kg/hr
Temperature 110 °C to 170 °C
Pressure Up to 5 kg/cm² (A)
MOC Stainless Steel
Power 3 KW TO 32 KW
Phase Single Phase / Three Phase
***Note: We can provide customised models too. Customised for High Pressure up to 10 kg/cm², for Superheated Steam, for Enhanced Steam Flow Rates.

Standard Offline models

Model Rated Power (KW) Max. Working Pressure Bar Kg/cm² (A) Max. Working Steam Temperature °C Steam Flow Kg/Hr Approx. Dimensions (mm) L x W x H
EN 3< 2 5 149 3 1300X450X1000
EN5 4 5 149 5 1300X450X1000

Standard Online models (OLD and OLR)

Online Economy Models OLD Model Rated Power (KW) Max. Working Pressure Bar Kg/cm² (A) Max. Working Steam Temperature °C Steam Flow Kg/Hr Approx. Dimensions (mm) L x W x H
EN-OLD 5 4.5 5 149 5 1300X450X1000
EN-OLD 10 8.5 5 149 10 1300X750X1000
EN-OLD 15 12.5 5 149 15 850X800X1200
EN-OLD 20 16.5 5 149 20 850X800X1200
EN-OLD 30 16.5 5 149 30 1000X900X1300
EN-OLD 40 32.5 5 149 40 1000X100X1300
EN-OLD 50 40.5 5 149 50 1500X1000X1300

Online Economy Models OLR Model Rated Power (KW) Max. Working Pressure Bar Kg/cm² (A) Max. Working Steam Temperature °C Steam Flow Kg/Hr Approx. Dimensions (mm) L x W x H
EN-OLR 5 4.5 5 149 5 1300X450X1000
EN-OLR 10 8.5 5 149 10 1300X750X1000
EN-OLR 15 12.5 5 149 15 850X800X1200
EN-OLR 20 16.5 5 149 20 850X800X1200
EN-OLR 30 16.5 5 149 30 1000X900X1300
EN-OLR 40 32.5 5 149 40 1000X100X1300
EN-OLR 50 40.5 5 149 50 1500X1000X1300

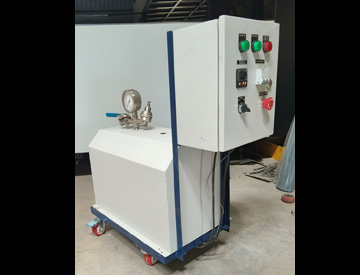

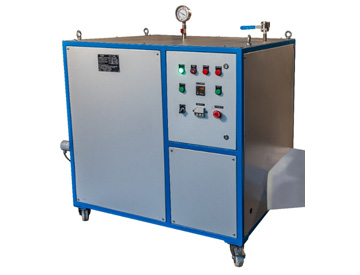

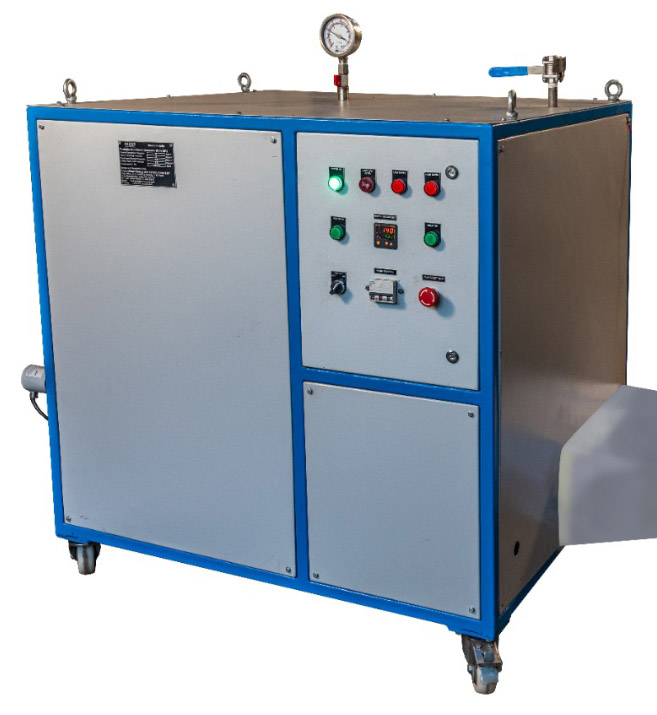

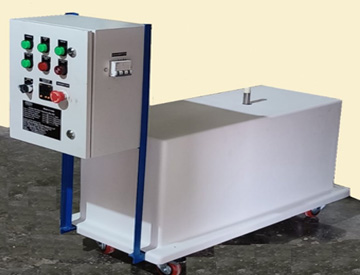

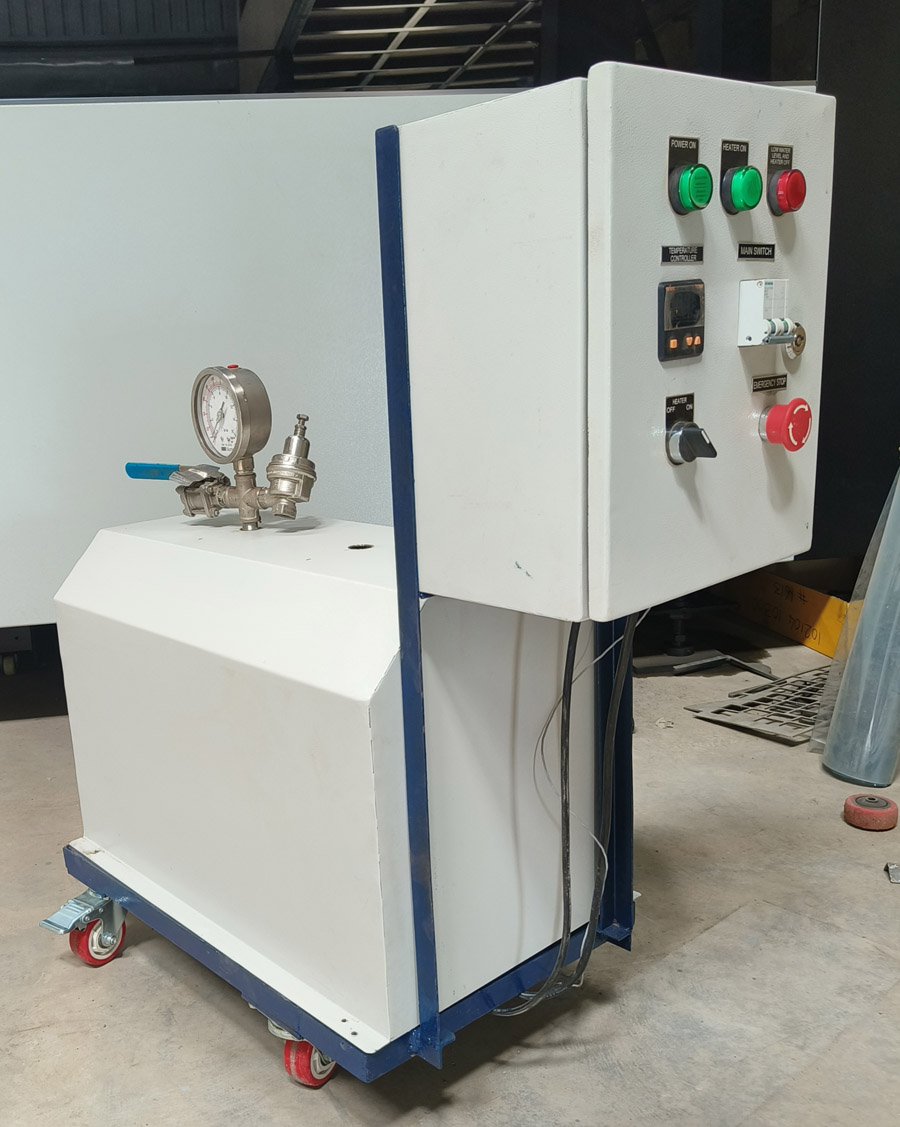

Each unit is supplied as a compact, skid-mounted package for easy installation and relocation. The system typically includes:
  • Insulated boiler vessel
  • High-efficient heating elements
  • Feed water pump (for Online models)
  • Water level controller
  • Pressure gauge
  • Temperature controller
  • Main stream stop valve
  • Safety valve
  • Electrical control panel and protection devices

    • All components are mounted on a portable, robust steel frame to ensure durability and ease of handling.All these models are Portable units and can move anywhere on the shopfloor. These models are made for indoor applications.

    Salient Features:

  • Very compact & portable design -ideal for space-constrained installations
  • Non-IBR design simplified compliance and faster commissioning
  • Fully automatic operation with precise level and temperature control
  • Clean, pollution-free steam generation -No combustion, No flue gas hence "Zero" Pollution
  • Low noise Level Noise Level below 75 DB
  • Robust construction with NDT-tested pressure parts for enhanced safety
  • Mechanical safety valve and inbuilt instrumentation for pressure and temperature indication
  • No-foundation installation Portable Units, easy to place and connect
  • Safe and Durable Provided with all safety measures and interlocks, nom special skills required for operating.
  • User Friendly Plug in type equipment, fully automatic with all safety measures, only a small training is required for the operator.
  • Totally Made in India All parts are originally made in India, All spares are available Ex-stock at reasonable rates.

    • These features make the Electric Mini Steam Generator a reliable, durable and low-maintenance solution for continuous or intermittent steam demand.

    Typical Applications

    Electric Mini Steam Generators from ENCONPUNE are suitable for:
    Pharmaceutical, Food, Chemical, Processing and Service Industry and Biotech applications

    • Food and beverage processing
    • Chemical and specialty chemical plants
    • Hospitals, labs and clean room utilities
    • Small process lines, pilot plants and R&D setups
    • Any application requiring clean, pyrogen-free, non-contaminating steam
